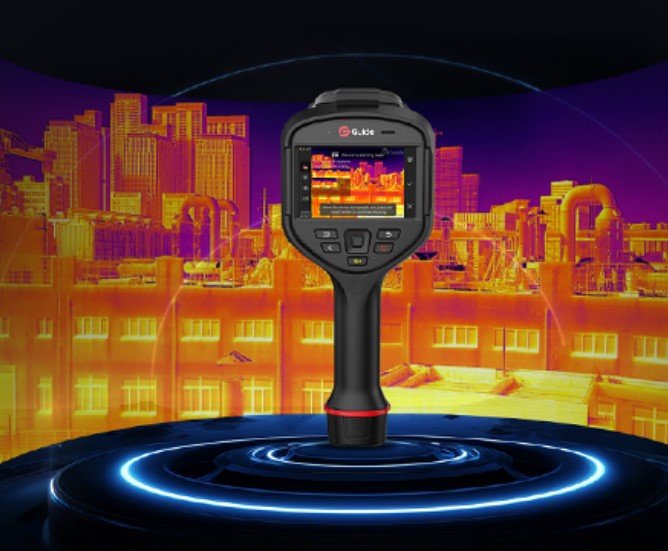

GUIDE H Series Enhanced -- High-Precision Hammer-Style Infrared Camera is specifically designed for industrial inspections and electrical grid maintenance. Equipped with a proprietary self-developed high-sensitivity detector (NETD <30mK, 640×480 resolution), its 50Hz high frame rate and wide temperature measurement range ensure precise capture of abnormal heating points. Equipped with a single-lens dual-FOV design, it instantly switches between wide-angle and narrow-angle views without lens changes. This enables seamless adaptation to complex scenarios, efficiently handling both long-distance inspections and close-range temperature measurements.
640x480IR Resolution
25°+15°、25°+45°FOV
50Hz Frame Rate
-40℃~2000℃Measurement Range
Complete ApexVision S1 System Architecture
Guide Sensmart's next-generation thermal imaging solution is engineered to elevate the infrared imaging performance
of temperature measurement devices at the system level. In any environment, it produces cleaner,
finer images and delivers consistently accurate and reliable temperature data and analysis for critical decision-making.
Model
H6S
ADD TO COMPARE
| Imaging and optics | ||||
|---|---|---|---|---|
| Core Technology Item | Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm SharpIR 2.0 | |||
| Detector type | VOx, 7.5 to 14μm | |||
| Infrared resolution | 640×480@12μm | |||
| Super resolution | Yes, Upgrade to 1280×960 | |||
| NETD | 15mK | |||
| Frame rate | 50Hz/9Hz | |||
| Focal length | 17.7mm | |||
| Field of view | 25°×19° | |||
| IFOV | 0.68mrad | |||
| Min. object distance | 0.15m | |||
| D:S | 1471:1 | |||
| Focusing mode | Manual / Automatic / Touch autofocus / Continuous autofocus | |||
| Digital zoom | 1.1x to 20x | |||
| Measurement and analysis | ||||
|---|---|---|---|---|

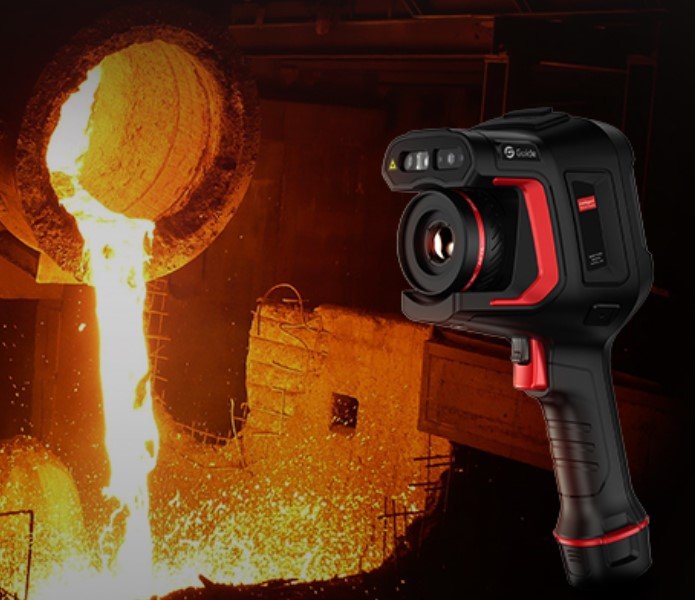

| Measurement range | Support auto-switching: -40°C to 150°C, 0°C to 650°C, 500°C to 2000°C (RangeMax Ultra-wide measurement range lens kit is required) | |||
| Measurement accuracy | ±2°C or ±2%, whichever is greater | |||
| Analyzed target | 16 in total (Spot/Line/Area) | |||
| Alarm | Full screen temperature threshold alarm (Image, Voice, Color and Flash) | |||
| Others | Customized physical button, OTA update | |||
| Image display | ||||
|---|---|---|---|---|
| Display screen | 4.3" LCD, touch screen, 800×480 | |||
| Image mode | IR, VIS, MIF, PIP | |||
| Color palettes | 15: White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia, Green Hot, Ice and Fire, Amber; Customized | |||
| Image adjustment | Level span mode: Automatic, Semi-automatic, Manual, Local dimming | |||
| Digital camera | 13MP | |||
| Functions | ||||
|---|---|---|---|---|
| Laser | Laser indication; Laser ranging 0.1m to 40m | |||
| Recording function | Photo (image stitching) and Video (infrared & visible light) | |||
| Cloud Services | Available | |||
| Storage and transmission | ||||
|---|---|---|---|---|
| Storage media | Built-in (64 GB) and external SD card (64 GB and up to 256 GB) | |||
| Image storage | JPG with temp info | |||
| Video storage | MP4 format (without temp info) can be used to record audio synchronously; Irgd (with temp info), up to 50 Hz (optional) for temperature analysis | |||
| External interface | USB-C, SD card slot, Tripod socket | |||
| WIFI | Yes, it can be connected to the mobile terminal for image and real-time video transmission | |||
| Bluetooth | Bluetooth 5.0, support image transmission (only for Android) | |||
| Power system | ||||
|---|---|---|---|---|
| Battery type | Lithium-ion rechargeable battery | |||
| Operating time | 5 hours | |||
| Environmental parameters | ||||
|---|---|---|---|---|
| Working temperature | -20°C to 50°C | |||
| IP rating | IP54 | |||
| Drop | 2m drop test | |||
| Physical parameters | ||||
|---|---|---|---|---|
| Hardware | Wi-Fi, Illuminator×2, Microphone, Speaker, Electronic Compass, GPS | |||
| Weight | 1.24KG (with standard lens and battery) | |||
| Size | 292×125×125mm | |||
| Software kit | PC: ThermoTools; Mobile: FocusIR (iOS/Android) | |||
| Standard | A device (with lens), Lens front and back cover, Lithium-ion battery (2 pcs), Desktop charger, Power adapter, Adapter plug, USB-C to USB-C cable, USB-A to USB-C cable, USB-C to Ethernet Adapter, SD card (64 GB) , Wrist strap, Shoulder strap, Carrying bag, Safety box, Quick Start Guide, Warranty Card, Inspection Report, Calibration Certificate | |||
| Options | Optional lenses: Wide-angle (44°), Medium Telephoto (15°), Telephoto (7°), TwinView DFOV (25°+15° / 25°+45°), RangeMax Ultra-wide Kit (25° / 15° / 7°), 3X Macro; Tripod, Docking station, Ethernet cable | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
