Memory for up to 1,000 articles / monitoring of the number and weight of pieces /
Scanner, USB, PC, printer connection / optional OC switching contacts, 4-20 mA, 0-10 V

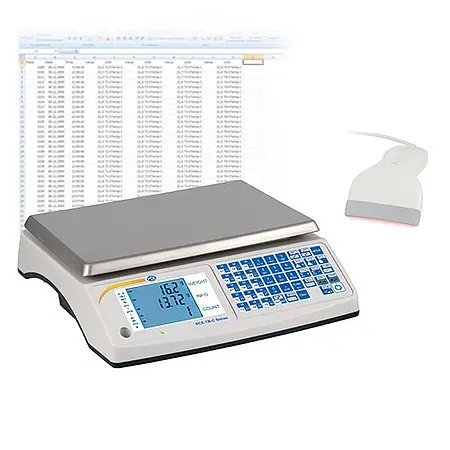

The benchtop scale is a real professional aid for all counting tasks. The benchtop scale has an internal data memory for up to 1,000 items that can easily be stored e.g. they can be retrieved with a scanner. The article data that can be saved in the benchtop scale are: article description, scanner code, piece weight, permissible weight deviations MIN / MAX and the weight of the packaging (TARE). Using the benchtop scale with the possible information is very easy.
Highlights
- article master processing with the help of PC

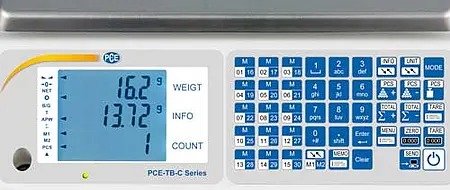

- triple display
- scanner connection (RS-232 Sub-D 9)
- RS-232 and USB interface
- summing function
- limit weight control
- memory for 10 tare weights
- optional: battery and scanner
- optional: LAN / Ethernet / network
- optional: USB data storage stick
- optional: 4-20 mA / 0-10 V analog output
Specification
|
|||||||||||
| Reference piece weight | by weighing or entering | ||||||||||
| Taring range | Multiple tare over the full weighing range | ||||||||||
| Display | multi-display 16 mm digit height | ||||||||||
| Memory | - for up to 5 users - for 30 products via the quick selection buttons - for a total of 1,000 product data records - for 10 tare weights |
||||||||||
| Product record | - location number - article name - barcode - unit weight / target weight - deviation tolerances / min. - max. - tare weight |
||||||||||
| Data maintenance | manually on the balance or with the help of PC software and Excel |
||||||||||
| Interfaces | RS-232 and USB Scanner possible via RS-232 / Sub-D 9 Optional: 4-20 mA / 0-10 V / switching contacts |
||||||||||
| Settling time | <3 s | ||||||||||
| Platform size | 300 x 210 mm (stainless steel) | ||||||||||
| Calibration | external possible / freely selectable with M1 weights | ||||||||||
| Power supply | 230V / 50 Hz - 12V / 1.2A power supply or 6V / 4.5Ah battery optional |
||||||||||
| Battery life | ca. 90 hours / charging time approx. 12 hours | ||||||||||
| Operating temperature | -10…+35°C / 15% rH – 85% rH | ||||||||||
| Dimensions | 335 x 320 x 110 mm | ||||||||||
| Weight | ca. 3.5 kg | ||||||||||
