Platform scales painted steel / platform size 1200 x 1200 mm / up to 2,000 kg /
4 switching outputs / 4 ... 20 mA analog output / table or panel mounting

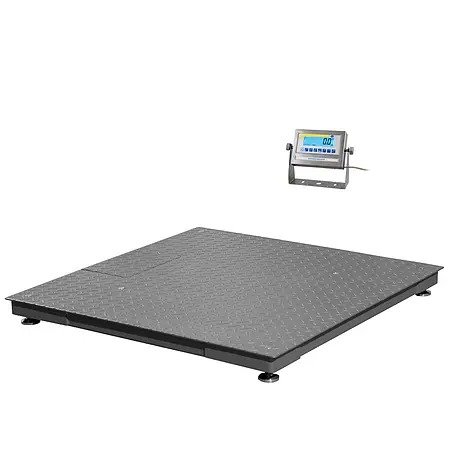

The platform scale PCE-RS 2000 is designed for stationary use. The robust construction makes this platform scale particularly well suited for weighing large objects. The platform scale is made of painted steel. Weighing data can be easily read thanks to its external display (with 4 m length cable). Functions of the platform scales are a summing function, a piece counting and check weighing. The platform scale is delivered with a bi-directional RS-232 interface and with optional PC software can show the measured valuesin Excel. The indicator of the platform scales can be placed on a table or an optional tripod.
Highlights
- Weighing range: 2,000 kg
- Resolution: 0.5 kg
- Bidirectional RS-232 interface
- Indicator in stainless steel IP 54
- LC Display with 25 mm digit height
- Resolution: 0.5 kg
- Bidirectional RS-232 interface
- Indicator in stainless steel IP 54
- LC Display with 25 mm digit height
- Cable tothe display about 5 m (connector)
- Summing function
- Parts counting function
- Checkweighing functionMIN / OK / MAX
- Analog Output 4...20 mA optional
- Summing function
- Parts counting function
- Checkweighing functionMIN / OK / MAX
- Analog Output 4...20 mA optional
Specification
| Weighing range | 2,000 kg |
| Resolution | 0.5 kg |
| Measurement uncertainty | ± 2 kg |
| Tare ran | over the entire weighing range |
| Display | LCD, height 25 mm,backlit |
| Interfaces | 1x bidirectional RS-232 interface 1x analog output 4...20 mA optional |
| Calibration | Input / multi-point adjustment possible |
| Operating temperature | -10 ... +40 °C / max. 85 % RH |
| Power supply | 12 V / 1000 mA AC adapter (battery not possible) |
| Dimensions weighing platform | 1200 x 1200 x 100 mm |
| Weight | ca. 85 kg |
